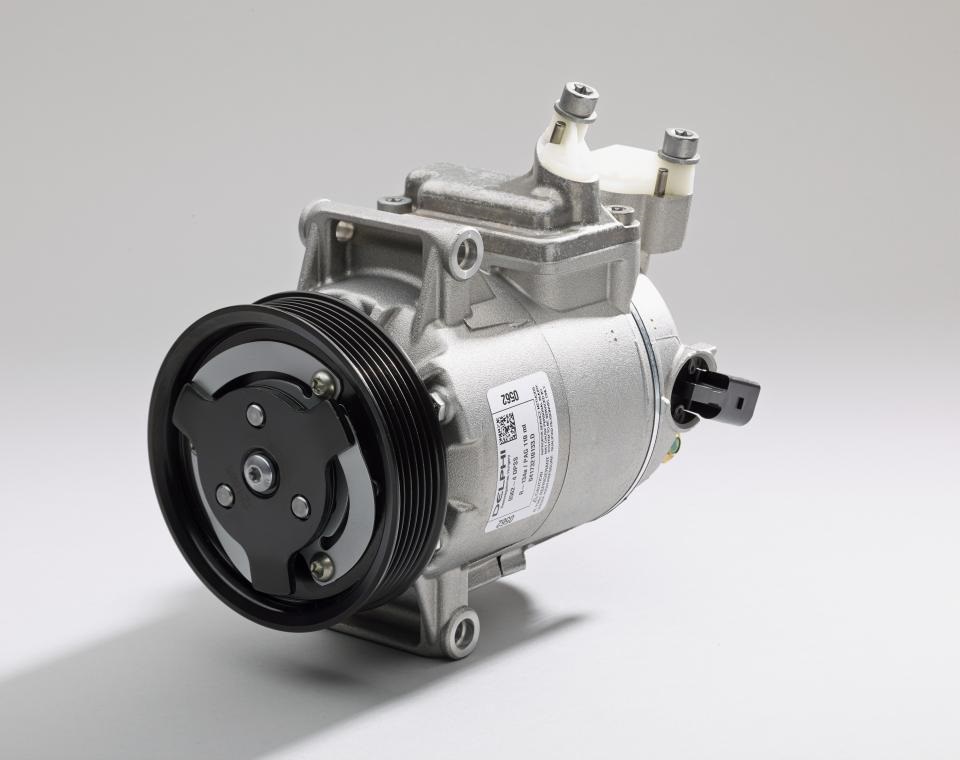

compressor_tsp0155465_17-02-14_1

Resource Centre 1 min read

10 Steps to Install a Compressor

Share Resource:

Air Conditioning & Thermal Compressors Maintenance Solutions How to 1 min read

Resource Highlights

In this article you will find out about the 10 steps to follow when installing a compressor.

1.

Preperation

Clean A/C System

Ensure the A/C system is clean – closed loop refrigerant flushing is recommended. If chemical flushing is used, all chemical flushing agents must be removed from the system.

Do not put any additives (sealants or system treatments) into the A/C system. Leak detection dyes, in proper amounts, are acceptable.
Use only mineral oil to lubricate seals in all systems (R12 and R134a).

2.	Lubricate Oil Balance System Oil balance system – use the correct type and amount of refrigerant lubricant.

3.	Service Suction Screen Service suction screen installation – prevents system debris from damaging new compressor.

4.	Check Evacuation & Charging Accurate evacuation and charging – new systems have charge weights of +/- one ounce.

5.	Check Leak Check Leak check entire air conditioning system – replacing compressor may not correct the system leak that caused previous compressor failure.

6.	Check Cycle Switch Check cycle switch performance – improper operating switch, not shut off as specified, will cause repeat failure.

7.

Fit

Fitting Compressor

Confirm OEM manufacturer air conditioning system performance – the compressor is not the only contributor to air conditioning performance.

Install a new or OEM equivalent receiver drier or accumulator dehydrator on the vehicle.
On orifice tube systems, install a new orifice tube. On expansion valve systems, clean the expansion valve inlet screen or replace the expansion valve.

8.	Install Installation Turn the compressor shaft at least 4 times, prior to installation on the vehicle – if unable to rotate by hand, a turning tool or spanner wrench must be used. Do not use a socket directly on the shaft nut or bolt.

9.	Replace Replace Components Replace non-flushable components – parallel flow condensers and hose assemblies with mufflers after a catastrophic compressor failure.

10.

Check

Check Voltage

Check voltage to coil – especially if previous compressor experienced clutch failure.

The specified form no longer exists or is currently unpublished.

Related article resources and products

Person changing gear in a manual vehicle.

Maintenance Solutions Need to Know Technicians

How to spot a worn out clutch

Our experts take a look at the most critical parts of a clutch to help you spot signs of wear.

Air Conditioning & Thermal Maintenance Solutions How it works

R1234yf. New A/C Refrigerant Legislation. New Market Opportunity

To comply with the latest European Union environmental requirements, vehicle manufacturers are transitioning to a new A/C refrigerant – R1234yf. As well as significantly reducing the environmental footprint of the modern vehicle, the change represents a great service opportunity for garages equipped with the right tools and know-how. But are you ready? With the low down from leading A/C supplier Delphi, you can prepare your garage for the new legislation….as well as a new A/C season, reaping the commercial rewards that come with both.

Tech Tips Resources Square

Engine oil Lubricants Maintenance Solutions Guides & Tips How it works Distributors DIYers Drivers Shop Owners Technicians

What Happens if You Use Poor Quality Oil?

Even good oils are not suitable for all vehicles. The oil range of a solid producer covers oils for virtually all vehicles, but oil should be chosen based not only on the viscosity grade (e.g., 10W-40) – there are other criteria, too, which are defined by allowances of vehicle manufacturers and by international standards.

Calibrating an EGR valve | Masters of Motion

Diesel Fuel Systems How to Technicians

How to calibrate an EGR valve

Discover how to calibrate an EGR valve in this How-to video, as our Delphi expert goes through the process using a DS480 BlueTech Diagnostic Tester Car Kit.

Fuel pumps visual inspection | #DTmasterclass

Fuel Systems How to Technicians

Fuel pumps visual inspection | #DTmasterclass

Premature fuel pump issues can be avoided with a quick visual check-up. Save future time and trouble using this guide.

How to disconnect the high voltage power in an EV | Masters of Motion

Batteries How to Technicians

How to disconnect the high voltage power in an EV

Performing any maintenance on a high-voltage system can be extremely hazardous, so it’s important to have the right training and follow the proper safety procedures.

Part resource centre how to icon

Fuel Management Fuel Systems How to DIYers Technicians

4 Steps on how to test fuel pressure and flow

Replacing a fuel pump can become a costly mistake if it is not the true cause of a fuel related problem.

delphi-brake-pads

Braking Maintenance Solutions

Brake Pads

Responsible for stopping vehicles quicker than ever before, brake pads are one of the most important components in the braking system. And is why there’s no compromise when it comes to choosing one. As a leading Tier-1 OE manufacturer, our brake pads are designed, manufactured and tested to the meet the same standards of performance as the OE. We call it Delphi “Five Layers of Quality”… and we build these into every one of our brake pads. But don’t just take our word for it – recent tests have proven that our pads stop quicker, brake quieter and last longer too.

delphi-rubber-to-metal-parts

Maintenance Solutions Rubber-to-metal Steering & Suspension

Rubber-to-Metal Parts

Designed to reduce vibrations and structure-borne noise, rubber-to-metal plays an important role in the steering and suspension set-up of modern vehicles. Thanks to their good damping properties and excellent load carrying capabilities, Delphi rubber-to-metal components absorb unwanted vibrations and sound, providing a comfortable and quiet ride, as well as improving vehicle stability and safety.

delphi-master-slave-wheel-cylinders

Braking Maintenance Solutions

Master, Slave & Wheel Cylinders

Simply put, the master cylinder generates hydraulic pressure that is transmitted via the brake fluid to either the wheel cylinder, in drum brakes, or the brake caliper, in disc brakes. These cylinders then exert mechanical pressure on the shoes or pads, and ultimately stop the vehicle. Checking these parts regularly and fitting only OE quality parts is therefore vital - anything less could compromise the vehicle’s braking performance and safety. With iron and aluminum castings, anodized coatings and OE spec seals and dust plugs, Delphi offers a full range of master, slave and wheel cylinders for reliable and long-lasting performance.

delphi-control-arm-wishbone

Maintenance Solutions Steering & Suspension Track control arms

Control Arms and Wishbones

Connecting the spindle, hub or knuckle and wheel to the vehicle’s chassis, the control arm or wishbone - depending on the type of suspension - is a critical part of any vehicle’s steering and suspension system. Also known as an A arm, it allows the wheels to move up and down, while preventing forward and rearward movement and maintaining directional input from the driver. So, when the steering wheel is turned, the wheels follow suit. That’s pretty important, so you’ll want to fit a quality steering brand that always performs to the same standard as OE. Just like Delphi.

pt-ms-brkg-banner

Braking Maintenance Solutions

Braking

The addition of electronic controls has made braking systems much safer and smarter. It’s no longer a matter of just stopping quickly. Nowadays how you stop, and even anticipating the need to stop, is just as important. That’s why our extensive braking line-up has been designed, engineered and manufactured to mirror the OE. So, not only do we stop just as quick as the OE, sometimes even quicker, we do it in complete control too. With the backing of expert diagnostics, training and technical support, you can count on Delphi to meet all your braking needs.

Part air con expansion valve

Air Conditioning & Thermal Maintenance Solutions

Expansion valve/orifice tube

Zgodne pod względem mocowania， konstrukcji i funkcji z produktami oryginalnymi w celu zapewnienia optymalnego ciśnienia i przepływu czynnika chłodniczego.

Air Conditioning & Thermal Maintenance Solutions

Pressure switch

Zapewnia jeszcze skuteczniejszą ochronę przed wysokimi i niskimi wartościami ciśnienia oraz regulację ciśnienia skraplania.

delphi-brake-abs-sensor

Braking Maintenance Solutions

Anti-lock Brake System (ABS) Sensors

Technology such as anti-lock brakes (ABS) and electronic stability are now common place thanks to the ABS sensor or wheel speed sensor. A small device, it has a big role to play; monitoring the wheel’s speed and rotation to prevent the brakes from locking. So, it’s important to always fit an OE quality part - anything less could compromise the effectiveness of these safety critical systems. Featuring weather pack connectors and plated pins, and rigorously tested to OE standards, Delphi ABS sensors deliver optimum signal stability and reliability in all conditions, for an accurate, long-lasting sensor that you can fit with confidence.

delphi-brake-drum

Braking Maintenance Solutions

Brake Drums

The lesser known cousin to the brake disc, brake drums work on the same principles as their front wheel equivalent. And although they’re subject to less braking force – over two-thirds occurs at the front – brake drums contribution to the vehicle’s safety should never be underestimated. In fact, rear brakes are essential for the stability and control of the vehicle, the functionality of the handbrake, and of course, stopping power. That’s why every drum brake we make is engineered to exacting OE standards for exceptional braking performance time and time again.

Parts braking brake fluid

Braking Maintenance Solutions

Brake Fluid

Brake fluid is one of the most important parts of the braking system, yet it is often overlooked. Also known as hydraulic fluid, it transfers the force created when you press the brake pedal, through the system, and onto the wheel hub. Ultimately stopping the vehicle. Without it, you simply wouldn’t be able to do so. Since there’s never a good time for this to happen, choosing a high-performance fluid, formulated for the application, such as Delphi, is a must.

delphi-cabin-air-filter

Air Conditioning & Thermal Maintenance Solutions

Cabin Air Filters

The cabin air filter is responsible for cleaning outside air entering the vehicle. Because up to 100,000 litres of air can be blown into the vehicle’s interior in less than an hour, it can easily become clogged with debris. Unfortunately, a blocked cabin filter will not be effective, resulting in a below-par heating and cooling system, and causing the air inside the vehicle to become more polluted than the air outside up to six times more. Similarly, bacteria and fungi can accumulate in the filter, leading to unpleasant smells in the cabin. Fitting a high-performance cabin filter, such as Delphi, is essential in eliminating these harmful pollutants and odours, safeguarding both you and the air conditioning (A/C) system.

Part chassis v steering top strut mount exploded view

Maintenance Solutions Steering & Suspension

Top strut mounts

Designed to mount the top of the strut to the vehicle chassis, the aptly named top strut mount dampens noise and vibration, whist also acting as a steering pivot for a smooth and responsive ride. Featuring the same superior damping properties and load carrying capabilities, as the rest of our rubber-to-metal range, Delphi’s top strut mounts deliver a quiet, comfortable and critically safe ride.

Brake Pads: Stop Quicker, Quieter and Last Longer

Braking Coated disc Maintenance Solutions

Delphi Coated Brake Discs

Spring showers, humid summers, and cold, wet and icy winters – they can all take their toll on your vehicle. Factors such as rain, snow, salt and other road sprays can result in corrosion. That means, exposed parts, such as brake discs can quickly become rusty - not a good look when you want to show off your shiny alloy wheels. One way to help prevent this is by fitting Delphi coated discs.

delphi-brake-hose

Braking Maintenance Solutions

Brake Hoses

Responsible for transmitting the hydraulic pressure to the brake calipers or wheel cylinders, the brake hose effectively turns pedal action into stopping power. Fitting anything less than an OE quality part, could result in reduced stopping power, or worse still, complete brake failure. That’s why we build 90 years of hydraulic braking expertise into every hose we make. Featuring a multi-layer construction and robust connections, Delphi brake hoses deliver outstanding strength, flexibility and durability, just like the OE.

Air Conditioning & Thermal

Accumulator dehydrators and receiver driers

Eine kalibrierte Ölrückführung und ein Molekularsieb als Trockenmittel dämmen die Feuchtigkeitsbildung ein und schützen vor Korrosion.

delphi-ball-joints

Ball joints Maintenance Solutions Steering & Suspension

Ball Joints

A safety-critical part, the ball joint acts as a Block 1 pivot between the wheels and suspension, allowing the vehicle to be steered, whilst also ensuring a comfortable ride. Since it constantly pivots through multiple planes and angles, it is subject to significant stress and wear. So, you’ll want to fit a high-quality ball joint that has been designed, engineered and manufactured to the same standards as OE.

Part air con condensor 017

Air Conditioning & Thermal Maintenance Solutions

Condensers

O condensador mantém e estabelece a temperatura do gás no sistema do ar condicionado, dissipando o calor por meio da pressão do sistema. Um bom funcionamento do condensador é essencial para não haver defeitos no sistema do ar condicionado e manter o ar refrigerado.Consulte os nossos produtos e aplicações no Catálogo Eletrônico.

delphi-brake-disc

Braking Maintenance Solutions

Brake Discs

The mechanical and thermal stresses acting on the brake disc are extremely high. So it’s important they’re up to the job, and perform just as intended. Like all of our braking products, our discs are made to mirror the OE. So whatever the technology, you can be assured that every Delphi disc has been designed, engineered and manufactured to provide the very best braking performance. Just like the OE. Be it coated, cross drilled or high-carbon…it’s a given.

delphi-link-stabiliser

Maintenance Solutions Steering & Suspension

Link Stabilizers

A link stabilizer, otherwise known as a sway bar, anti-roll bar or even stabilizer link, connects the vehicles left and right wheels through short links, reducing body roll whilst cornering, and absorbing shocks from potholes and uneven road surfaces. Fitting a strong, durable part is therefore a must. With an enlarged ball bin made from surface-hardened steel, a top-grade rubber boot and a high-performance grease, Delphi link stabilizers deliver a safe and comfortable ride, time and time again.

Air Conditioning & Thermal

Compressor oils

O aditivo de radiador Delphi é responsável por lubrificar e proteger o sistema de arrefecimento contra a corrosão, elevar o ponto de ebulição e também evitar o congelamento da água.É muito importante investir em aditivos que contenham MEG (monoetilenoglicol) em sua fórmula, água de boa qualidade e uma mistura de inibidores de corrosão apropriada para garantir um efeito prolongado e a preservação de todo o sistema.

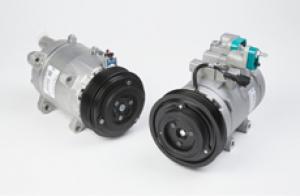

delphi-ac-compressor
