DPF ADDITIVE LEVEL RESET STEPS:
- Jack up the vehicle
- Disconnect the battery.

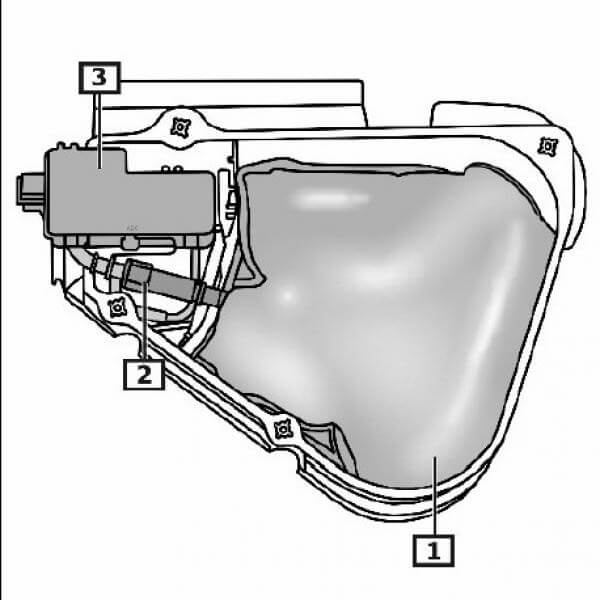

- Loosen the fixing(s) (1).
- Remove the cover(s) (2).
- Remove the dosing pump hose(s) (3).

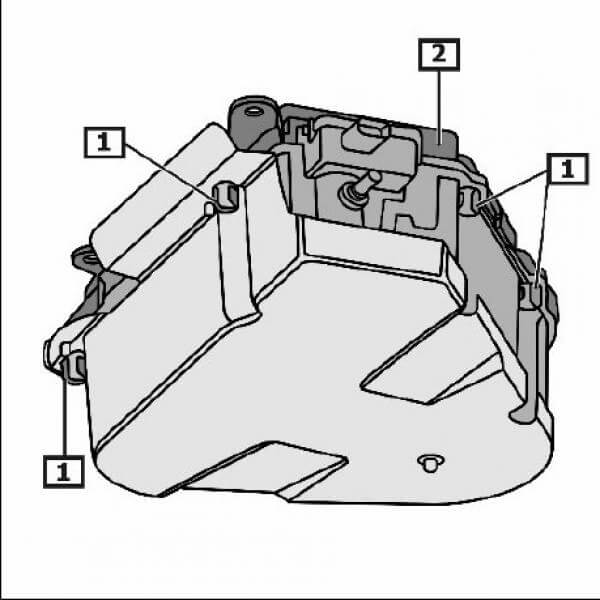

- Remove the additive reservoir from the housing (1).
- Fit in the reverse order.
- Reset the level display to zero
- Refilling using the Delphi diagnostic bench, reset the fill level display to zero.

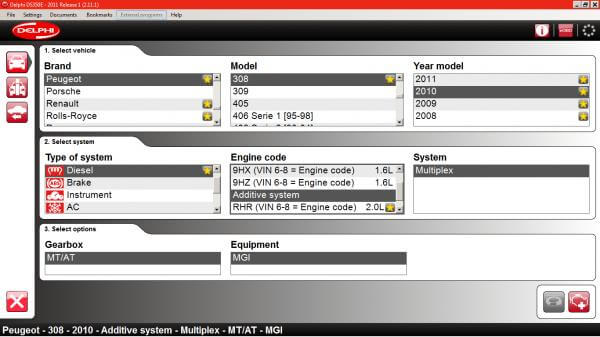

Select the vehicle as shown in the illustration.
- Key on, engine stopped.
- All electrical consumers disconnected.
- Battery voltage greater than 12 V.
- Additive reservoir filled or replaced.
- Start communication with the vehicle and select the "Settings" function.
- Follow the program instructions.
- Disconnect the diagnostic unit after finishing.
- The operation is finished.
If the operation fails, check the test conditions and deal with any fault codes found.
|Common Rail General Manual for 2.0 HDi 16v
Tools and equipment
|Resetting the additive level
