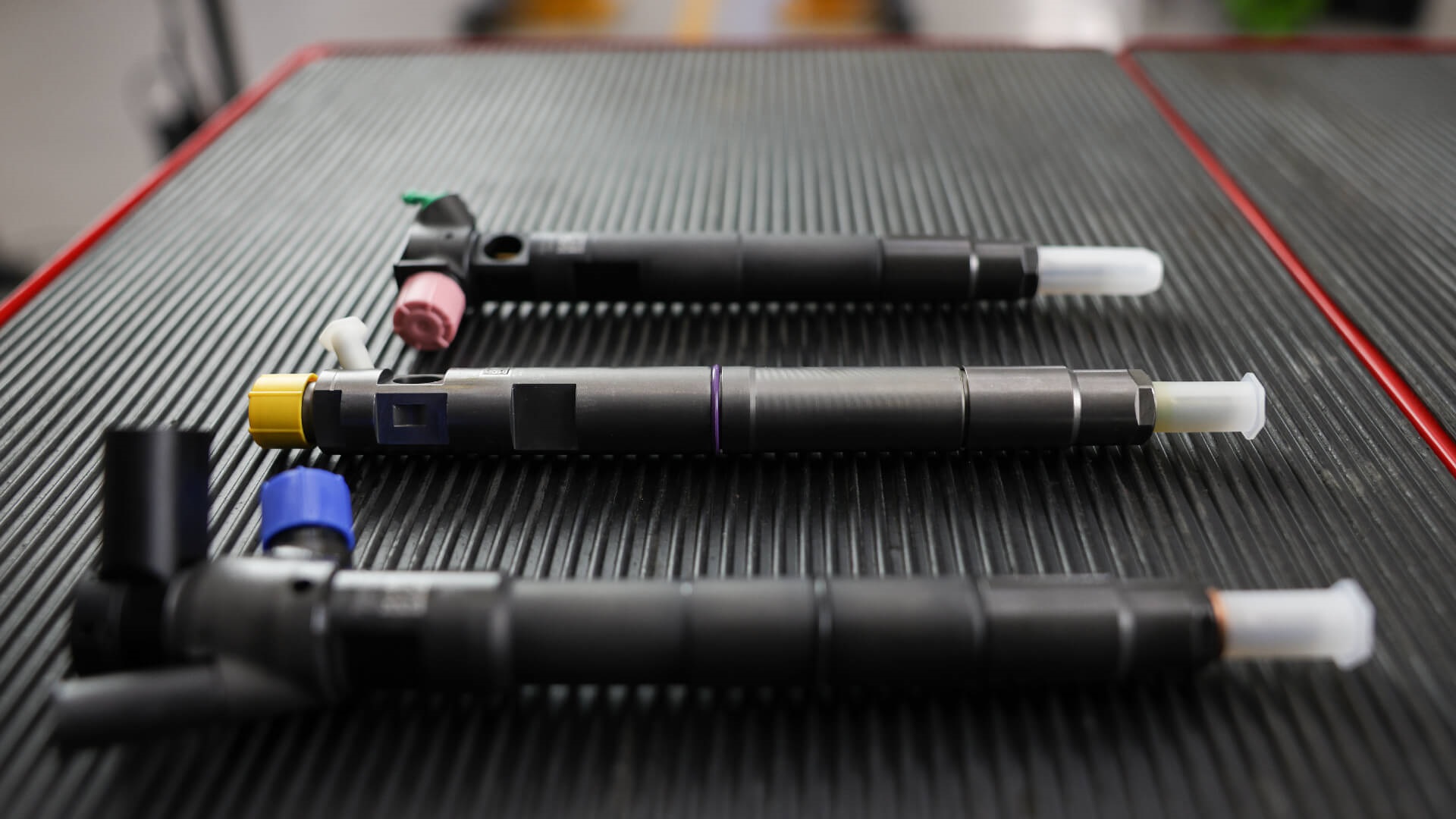

Understanding common rail injectors

The injectors themselves are a high performance, high precision piece of kit working at very exact parameters. When being fitted or replaced, it’s very important that they’re programmed to work with the vehicle they’re being installed into, otherwise the whole system will not perform as intended.

What is a common rail injector and how does it work

After fuel is pressurised in the fuel pump, it’s stored in the common rail system which acts as a reservoir feeding each of the injectors. These then spray the fuel into the combustion chambers with incredible accuracy, spraying at around 30,000 psi through clearances as small as 1 micron.

Tools and equipment you’ll need

As well as the replacement injectors, you’ll need a selection of tools:

• Ratchet and socket set
• Screwdrivers
• Pliers

However, if the injector is seized, you may need more equipment – even hydraulic pullers in certain cases.

Step-by-step guide to replacing a common rail injector

We’ll give you a detailed breakdown of the process in the following steps, but if you’d like a visual demonstration, you can easily follow along with our Masters of Motion video how-to guide. Watch it now, here.

Step 1: Remove the old injector

Take off the engine cover to reveal the common rail system. Take out the injector pipe, making sure any exposed parts are capped to prevent contamination. Next, remove the back leakage pipe, followed by the electrical connection. Once that’s done, unfasten the clamp holding injector, then remove it from the seat. Throughout the process, remove and replace any sealing washers as required.

Step 2: Install the new injector

Before fitting, make sure the injector has the correct part number and make a note of the correction code.

Remove the protective cap from the nozzle and then slide the injector into place carefully. Now, you can refasten the clamp. Then it’s time to refit the rest: the electrical connector and back leakage pipe. Once that’s done, you lastly have to re-fit the high-pressure fuel pipe. Ideally, use a new pipe to avoid swarf.

Step 3: Program the injector

This is a very important step, as the replacement is not complete until the common rail injector has been programmed to work with the vehicle. Connect your diagnostics unit to the vehicle, and navigate to injector programming. Choose the cylinder injector that’s been replaced, then input the new injector code into the system.

Step 4: Final checks

The process is now complete. The last thing to do is test whether the replacement was successful and the vehicle is running as it should. Start the engine, check for error codes with the diagnostic tool and ensure it drives smoothly.

FAQs

Are common rail injectors all the same? 

Even if they’re the same type and make, every common rail injector should be considered one of a kind. They’re extremely precise instruments, so the tiniest variations will affect their performance.

Why do I need to code an injector into the vehicle’s engine management system? 

Each common rail injector is unique with individual manufacturing variations. Programming an injector into the vehicle’s ECU effectively tells the vehicle what these variations are so it can adjust for any differences. This is why coding injectors into the vehicle after fitting them is an essential step in the process. 

What are the codes found on common rail injectors? 

These are codes that relate to the individual characteristics of each injector. 

What are the codes called? 

The codes have many names: Trim code, Compensation code, C2I, IMA, IQA and C3I.
